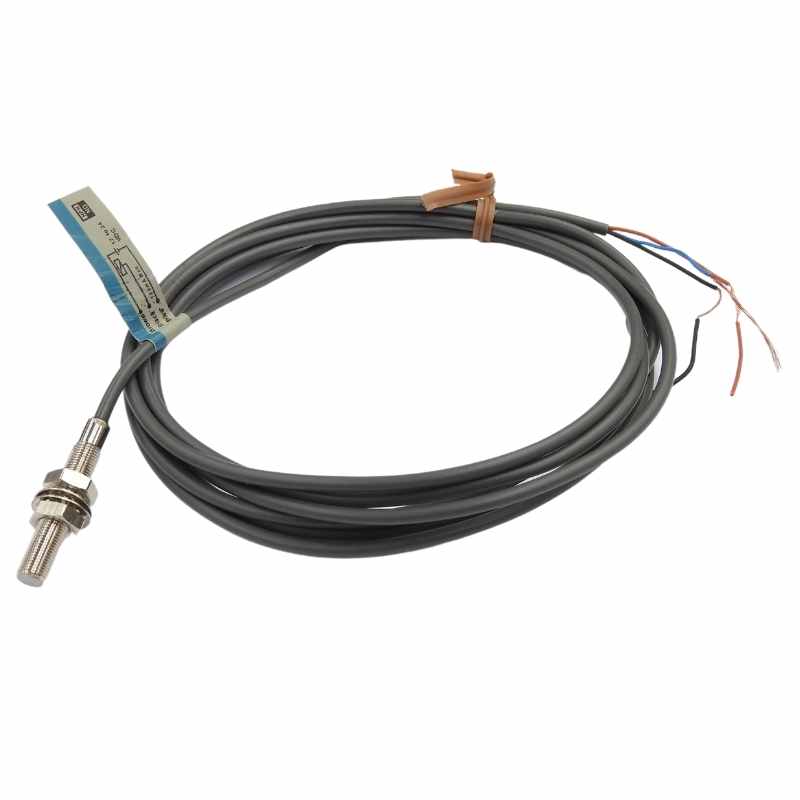

This Inductive Proximity Sensor M5 – NPN – NO is widely used in the automatic control industry for detecting, controlling, and noncontact switching. When the proximity switch is close to some target object, it will send out a control signal. There are many applications that these Inductive Sensors can be used such as General machines, paper making, light industry for limiting stations, orientation taking count, speeding trials, Laser, Plasmas, CNC Routers and etc. With an M5x 30mm threaded body, this sensor can be easily adapted for our Plates and Brackets. For the CNC Router application, this sensor can also be used with our most popular controllers such as xPRO V5 These Inductive sensors can be paired with many Plates and Brackets that we offer allowing many mounting options on the V-Slot Profile – 20 series. Specification: Operational Voltage: 12-24V DC Thread Size: M5 Thread Length: 30mm Model Number: LJ5A3-1-Z/BX Transistor Type: NPN Contact Type: Normally Open Sensing Distance: 1mm±10% Standard Detection: Iron 5x5x1mm Detection Object: Magnetic Metal Response Frequency: DC:0.5kHz AC:25Hz Pro Tip: For a 90-Degree mounting on a V-Slot Profile – 20 series, we recommend pairing the inductive switches to 1x M5 Drop-In Tee Nut and 1x M5x8mm Low Profile Screw.
